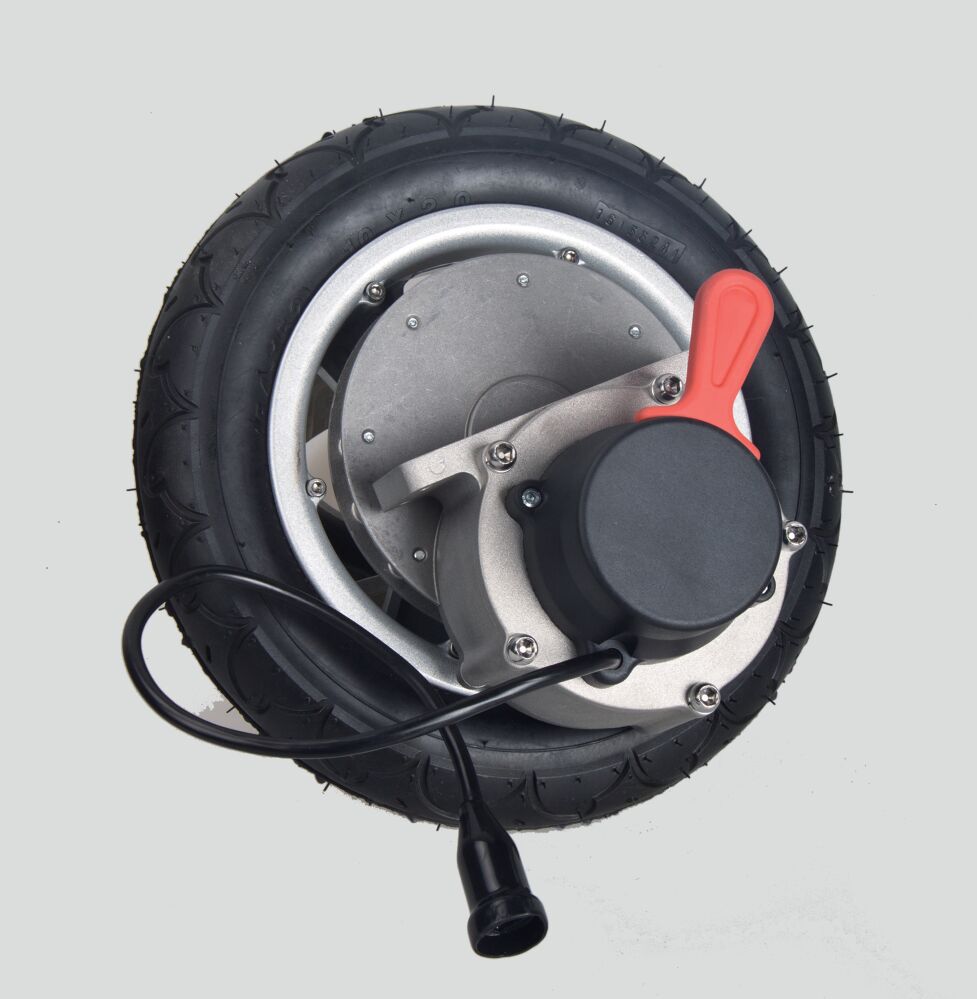

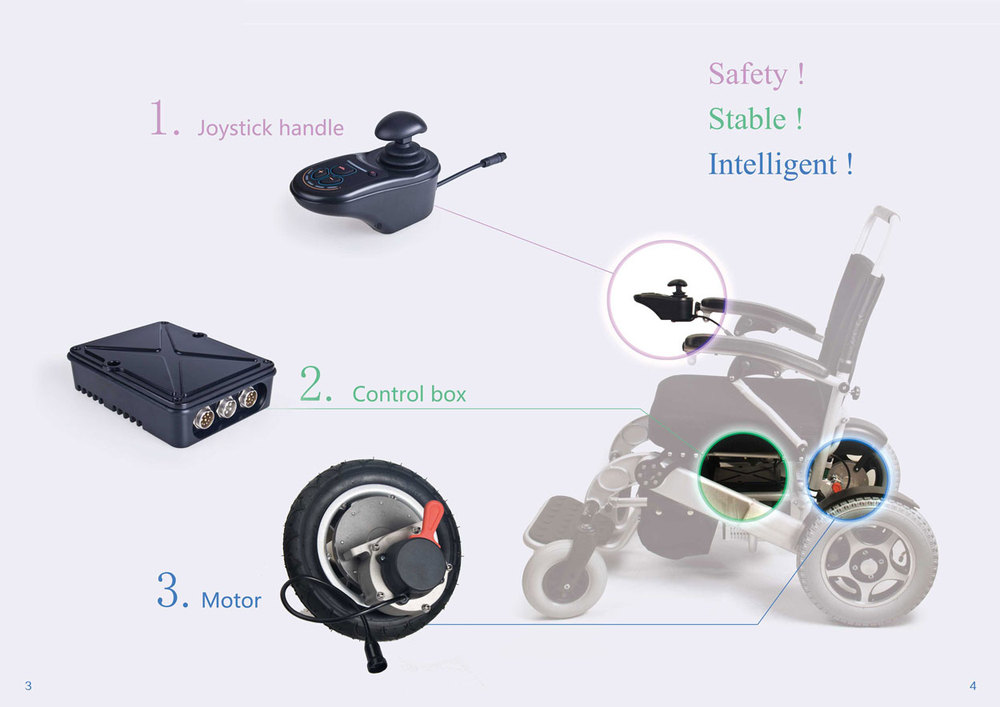

Wheelchair Spare Parts & Wheelchair Controller And Motor

FOB Reference Price:Get Latest Price
US $50-150 / Set | 100 Set/Sets (Min. Order)
Supply Ability:
5000 Set/Sets per Day
Port:
Nanjing
Report Suspicious Activity
Overview
Quick Details
Properties:
Rehabilitation Therapy Supplies, Rehabilitation Therapy Supplie
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Yuanlang
Model Number:
Yuanlang, YL150A
Type:
Wheelchair
Voltage:
24V
Power:
180w-220w
Size of controller:
173*135*47mm
Material:
ABS+Aluminum alloy
Model item:
Electronic wheelchair controller
Size of handle:
165*81*109mm
Brand:
Yuanlang
Packaging & Delivery
Packaging Details
Each controller is packed in single package box,and 50 sets in double-corrugated carton
Product Description

Working Voltage: 24Vdc/36Vdc

Max Current:50A

Operating voltage:18Vdc – 28Vdc

PWM: 20kHz

Brake voltage:6V-24Vdc

Maximum rated current:12A

Allowed maximum braking currents:1A

Allowed operating environment temperature:-25C– 50C

Storage temperature:-40C – 65C

Allowed humidity level:IPX4

EMC Test results:

Test standard:30V/m EN12184 ANSI/RESNA

Cell radiation:EN55022 B Grade

ESD: IEC801

Braking function of open circuit detection







Production advantage:



Based on current market demand,we, independently developed the cost-effective DC brushless wheelchair controller systerm, and its main features are as follows:
1) Advanced PID algorithm to ensure speed drive smoother and more stable.
2) soft start, soft stop and intelligent brake to ensure that wheelchair traveling in any environment more stable, more secure.
3) Emergency power protection, power down the controller, the wheelchair remains controllable and slow down and stop.
4) Automatic load compensation ensures stable wheelchair obstacle to maintain speed or uphill.
5) Protection function of overcurrent, overvoltage, overload, undervoltage, short circuit of the motor, open circuit of the motor, MOS tube Shizuta protection and protection MOS moving too perfect protection.
6) closed loop speed controller design, H-bridge driver, dynamic braking, no inertia when wheelchair downhill.
7) High-definition LED screen displays.
8) The controller parameters can be programmed to adjust to meet the different needs of different users.
9) joystick controlliny the electric wheelchair by Hall allows the driver to control a wheelchair handy.
10) self-diagnostic function to ensure more convenient and faster installation.
11) common to the industry-standard interface mode, which will help vehicle manufacturers procurement and management.
12) flexible cable for easy alignment and ensure electric wheelchair's elegant appearance.



Our service:



 Your inquiry related to our products or prices will be replied in 24 hours.



•Well-trained and experience staffs  to answer all your requires in fluent English.
•OEM&ODM,  any your customized wireless chargers we can help you to design and put into your products.
•Distributership are offered for your unique design and some our current models.
•Protection of your sales area, ideas of design and all your private information.



About our company:



>Advanced equipment from Germany and Japan



>9,000 m2 facility including a class 10,000 dust-free workshop



>Monthly capacity of 50,000 units



>Order can be shipped in 7-15 days



>OEM and ODM projects are welcomed



>Samples completed in 3 days



>Servics available in English,French and Japanese





If you have any kinds of the request for electronic wheelchair controller or any otherbrushless motor cotroller,please do not hesitate to contact us-such a professional and well-trained team.
