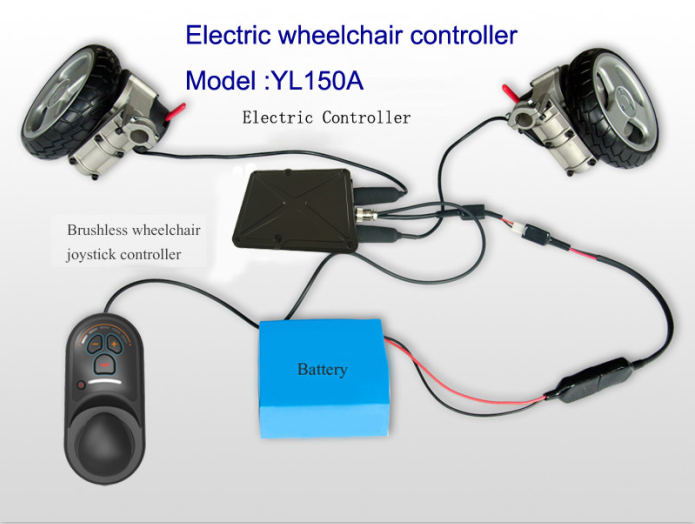

Brushless controller 24V 50A joystick controller for electric wheelchair

FOB Reference Price:Get Latest Price
US $100-150 / Set | 100 Set/Sets wheelchair controller (Min. Order)
Supply Ability:
5000 Set/Sets per Day wheelchair controller
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Properties:
Rehabilitation Therapy Supplies, Rehabilitation Therapy Supplie
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Yuanlang
Model Number:
YL150A
Type:
Wheelchair
Product Name:
24v Electric Wheelchair Joystick Controller for Power Wheelchair
Voltage:
24V/36V
power:
180w/250w
Size of controller:
173*135*47mm
Material:
ABS+Aluminum alloy
Color:
Black
Size of handle:
165*81*109mm
Style:
Brushless
Weight:
1.4kg
Packaging & Delivery
Packaging Details
Each controller is packed in single package box,and 50 sets in double-corrugated carton
Delivery Time
Shipped in 7 days after payment


24v Electric Wheelchair Joystick Controller for Power Wheelchair

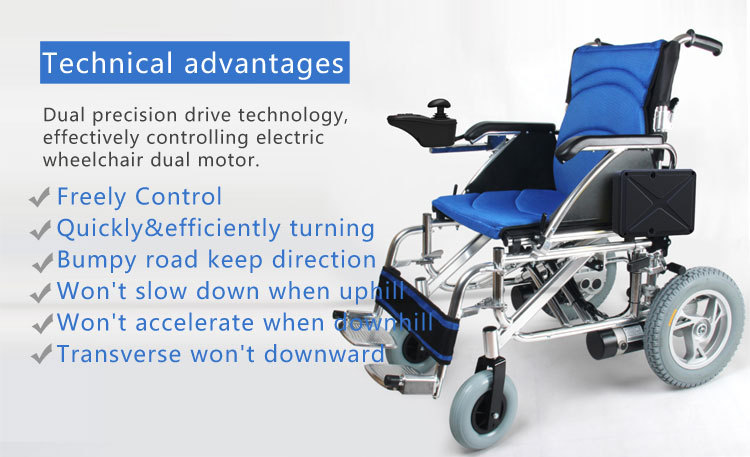

This is a creative design fashion brushless wheelchair joystick-style controller.It allows users to smoothly through a user-friendly control panel,instant control of the power wheelchair in any direction (360 degrees) movement.



The controller with programmble computer chips to drive two brushless DC motors with different speed or direction of rotation to achieve power wheelchair movement in any direction, so users really feel the power of perfect control through finger.

Product Description
Production Specification
Product Name

24v Electric Wheelchair Joystick Controller for Power Wheelchair



Working Voltage24Vdc/36Vdc
Max Current50A
Operating voltage18Vdc-28Vdc
PWM20kHz
Brake voltage6V24Vdc
Maximum rated current12A
Allowed maximum braking currents1A
Allowed operating environment temperature-25C—50C
Storage temperature-40C—65C
Allowed humidity levelIPX4
EMC Test Results
Test standard30V/m EN12184 ANSI/RESNA
Cell radiationEN55022 B Grade
ESDIEC801
Braking function of open circuit detection



This is a creative design fashion electric brushless wheelchair joystick-style controller. It allows users to smoothly through a user-friendly control panel, instant control of the power wheelchair in any direction (360 degrees) movement.



The electric controller with programmable computer chips to drive two brushless DC motors with different speed or direction of rotation to achieve wheelchair movement in any direction,
so users really feel the power of perfect control through finger.



 Production Advantage

Based on current market demand,we, independently developed the cost-effective DC brushless wheelchair controller systerm, and its main features are as follows:

1) Advanced PID algorithm to ensure speed drive smoother and more stable.
2) soft start, soft stop and intelligent brake to ensure that wheelchair traveling in any environment more stable, more secure.
3) Emergency power protection, power down the controller, the wheelchair remains controllable and slow down and stop.
4) Automatic load compensation ensures stable wheelchair obstacle to maintain speed or uphill.

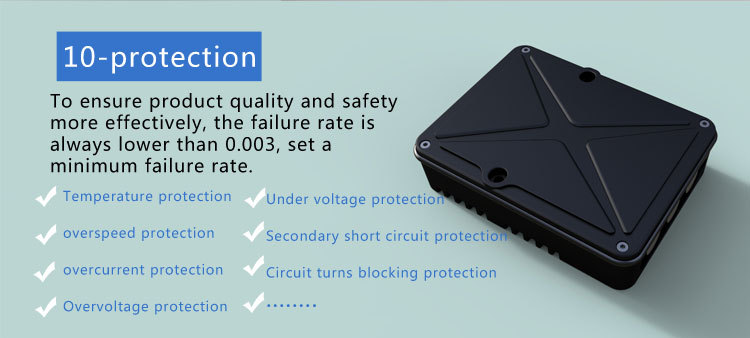

5) Protection function of overcurrent, overvoltage, overload, undervoltage, short circuit of the motor, open circuit of the motor, MOS tube Shizuta protection and protection MOS moving too perfect protection.
6) closed loop speed controller design, H-bridge driver, dynamic braking, no inertia when wheelchair downhill.
7) High-definition LED screen displays.
8) The controller parameters can be programmed to adjust to meet the different needs of different users.
9) joystick controlliny the electric wheelchair by Hall allows the driver to control a wheelchair handy.
10) self-diagnostic function to ensure more convenient and faster installation.
11) common to the industry-standard interface mode, which will help vehicle manufacturers procurement and management.
12) flexible cable for easy alignment and ensure electric wheelchair's elegant appearance.



Production Specification
Product Name

24v Electric Wheelchair Joystick Controller for Power Wheelchair



Rated Power180W
Rated Voltage24V dc
Insulation ClassF Class
No-load Speed3100rmp
No-load Output Speed165~171 rmp
Starting Current<=1.8A max
No-load Current<=1.1A
Insulation Voltage0~550Vac/ 1mA/ 1sec
Reducer Speed Ratio17:1
Electromagnetic Brake3N.m 24V dc
Wheel diameterinch/12 inch
