250w brushless wheelchair dc gear motor/electric wheel hub motor

FOB Reference Price:Get Latest Price
US $50-150 / Acres | 1 Set/Sets for brushless wheelchair gear motor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YuanLang
Model Number:
YL250W
Usage:
Electric Bicycle, Home Appliance, Wheelchair
Certification:
CE, ISO9001:2008
Type:
Gear Motor
Torque:
Customized
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Totally Enclosed
Speed(RPM):
3100rpm
Continuous Current(A):
Customized
Output Power:
250w
Voltage(V):
24v
Efficiency:
IE 4
Product name:
brushless wheelchair gear motor
Material:
ABS+Aluminum
Color:
black
OEM/ODM:
yes
Size:
8/10/12inch
Speed:
adjustable
Noise:
low noise
Weight:
4.1kg
Electromagnetic Brake:
3N.m
Keywords:
brushless wheelchair motor
Supply Ability
Supply Ability:
1000 Acre/Acres per Day for brushless wheelchair gear motor
Packaging & Delivery
Packaging Details
Have clapboard inner to protect, then the box by every set
Port
Nanjing,Shanghai
Lead Time :
Within one week, large order is within 45 days

electric wheelchair hub wheel motor from manufacturer





1.Brushless motor, high efficiency, long working lifespan, free of maintenance;



2.Single-stage gear power transmission, low loss and long driving range;



3.Small size, light-weight, suitable for various portable electric wheelchairs;



4.Speed and power of the motor at users’ option;Adaptive 8 inches inflate-free tyre;



5.With anti-tip wheels (user selectable);













Production Specification
Product Name

electric wheelchair dc gear motor




Rated Power250W
Rated Voltage24V dc
Insulation ClassF Class
No-load Speed3580rmp
No-load Output Speed165~175 rmp
Starting Current<=2.4A max
No-load Current<=1.4A
Insulation Voltage0~550Vac/ 1mA/ 1sec
Reducer Speed Ratio22:1
Electromagnetic Brake3N.m 24V dc
Wheel diameterinch/10 inch/12 inch





Production advantage:



1. Omitting a lot of transmission parts, making more simple structure.

The car with hub motor will get better space, utilization and higher transmission             efficiency.



2. Achieving varieties complex driving mode.

It can easily achieve the FWD (Front Wheel Drive), RWD(Rear Wheel Drive) or     4WD(Four Wheel Drive) form. Full-time four-wheel drive will be easy in vehicle with hub motor.



3. Using a variety of new energy vehicle technology easily.

Nowadays, more and more energy vehicle uses electric drive, so hub motor drive plays an important role. No matter all-electric battery, fuel cell battery bus or EREV(Extended-Range Electric Vehicle), hub motor is suitable, also for hybrid Electric Vehicle.

brushless wheelchair motor.pngelectric wheelchair motor.png

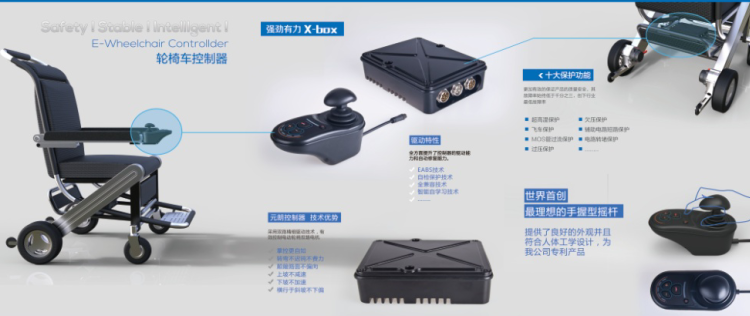

this is wheelchair joystick controller link:

http://www.alibaba.com/product-detail/24v-Electric-Wheelchair-Joystick-Controller-for_60318048308.html
