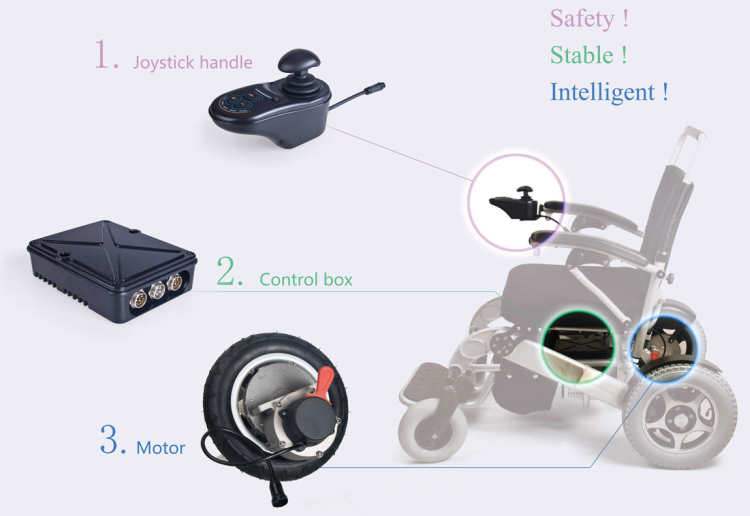

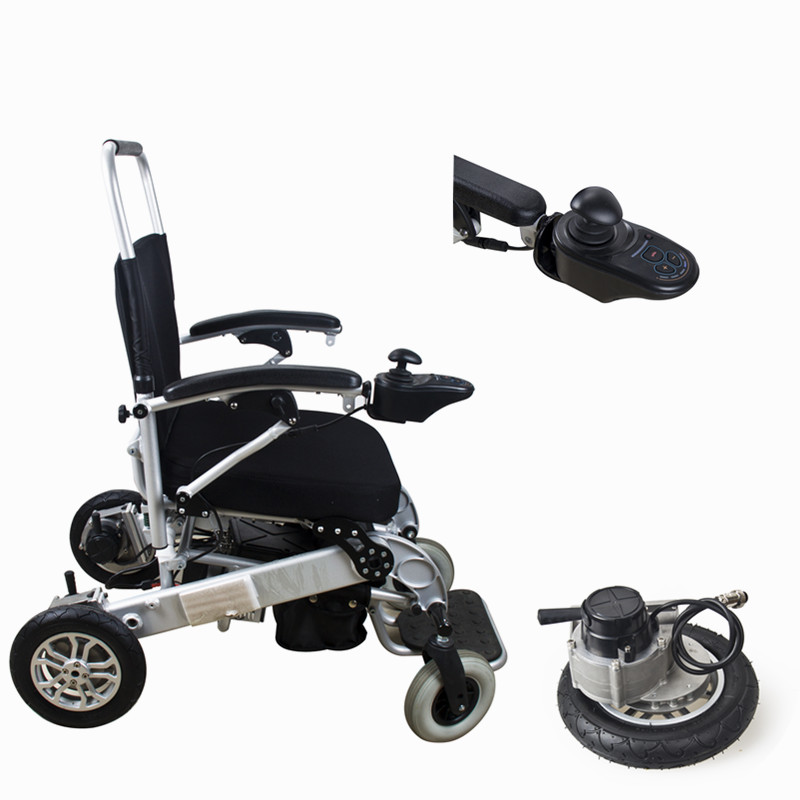

electric wheelchair conversion kit/24v 250w power wheelchairs controllers & joystick

FOB Reference Price:Get Latest Price
US $50-100 / Acres | 10 Acre/Acres electric wheelchair motor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Yuanlang
Model Number:
YL150
Usage:
electric wheelchair
Certification:
CCC, CE, ROHS, UL, VDE
Type:
Gear Motor
Torque:
High Torque
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Explosion-proof
Speed(RPM):
3000rpm
Continuous Current(A):
0.5A
Output Power:
250W
Voltage(V):
24V
Efficiency:
IE 3
Application:
Electric wheelchair
Name:
DC Electric Motor For Wheelchair
Rated Voltage:
24.0V
Color:
Black
Size:
8/10/12inch
Power:
200-250W
Reducer Speed Ratio:
22:1
Starting Current:
<=2.4Amax
Starting Torque:
1.2N.m (0~10s)
Max Torque:
45N.m
Supply Ability
Supply Ability:
5000 Acre/Acres per Week electric wheelchair motor
Packaging & Delivery
Packaging Details
Have clapboard inner to protect, then the box by every set
Port
Shanghai

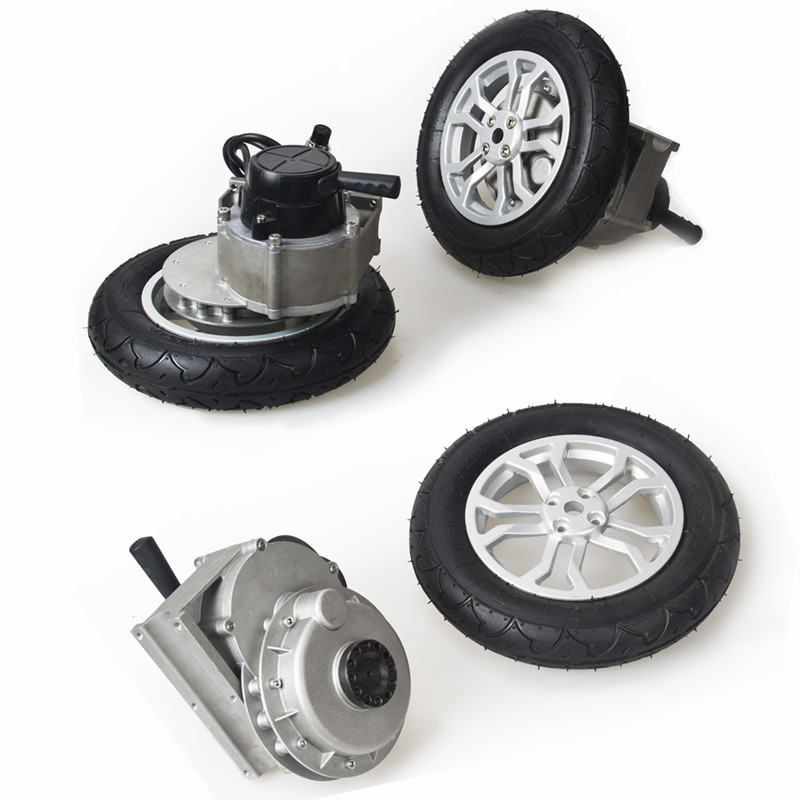

electric wheelchair hub wheel motor from manufacturer





1.Brushless motor, high efficiency, long working lifespan, free of maintenance;



2.Single-stage gear power transmission, low loss and long driving range;



3.Small size, light-weight, suitable for various portable electric wheelchairs;



4.Speed and power of the motor at users’ option;Adaptive 8 inches inflate-free tyre;



5.With anti-tip wheels (user selectable);













Production Specification
Product Name

electric wheelchair dc gear motor




Rated Power250W
Rated Voltage24V dc
Insulation ClassF Class
No-load Speed3580rmp
No-load Output Speed165~175 rmp
Starting Current<=2.4A max
No-load Current<=1.4A
Insulation Voltage0~550Vac/ 1mA/ 1sec
Reducer Speed Ratio22:1
Electromagnetic Brake3N.m 24V dc
Wheel diameterinch/10 inch/12 inch





Production advantage:



1. Omitting a lot of transmission parts, making more simple structure.

The car with hub motor will get better space, utilization and higher transmission             efficiency.



2. Achieving varieties complex driving mode.

It can easily achieve the FWD (Front Wheel Drive), RWD(Rear Wheel Drive) or     4WD(Four Wheel Drive) form. Full-time four-wheel drive will be easy in vehicle with hub motor.



3. Using a variety of new energy vehicle technology easily.

Nowadays, more and more energy vehicle uses electric drive, so hub motor drive plays an important role. No matter all-electric battery, fuel cell battery bus or EREV(Extended-Range Electric Vehicle), hub motor is suitable, also for hybrid Electric Vehicle.
